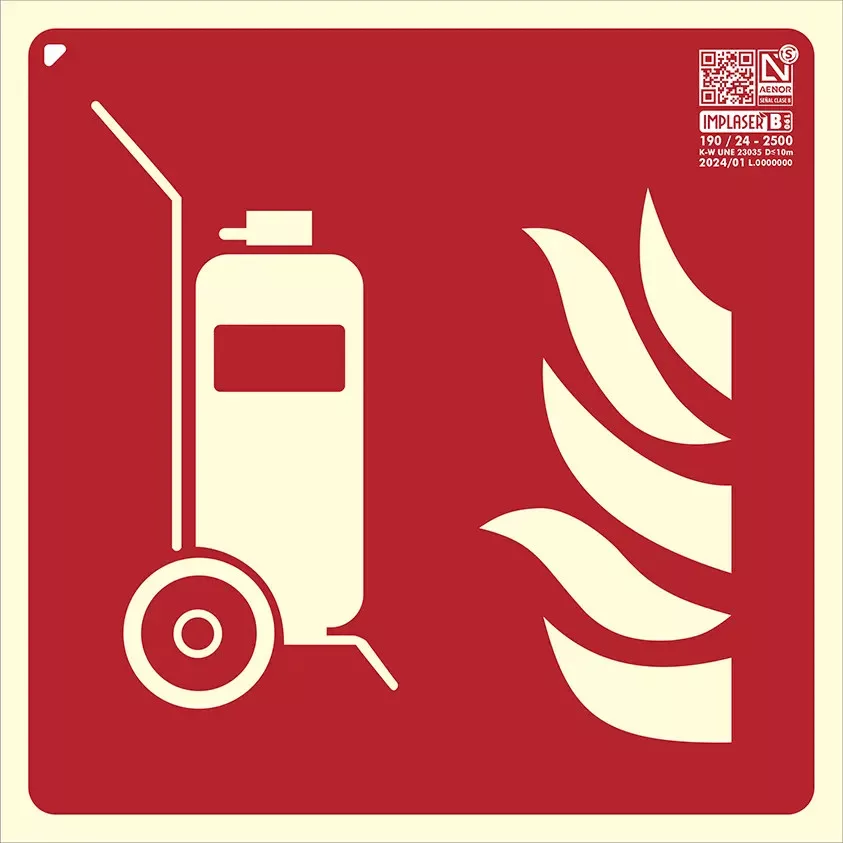

Fire extinguisher, Illuminated plastic safety sign board 21x21 cm - IMPLASER B150
1 990 Ft(1 567 Ft+VAT)
Fire extinguisher, Illuminated plastic safety sign board 21x21 cm - IMPLASER B150
In stock 97 db
1 990 Ft(1 567 Ft+VAT)
Expected delivery :
20/10/2026
Quantity discount:
1
db
-300 Ft/db
1 690 Ft/db
10
db
-500 Ft/db
1 490 Ft/db
50
db
-700 Ft/db
1 290 Ft/db
IMPLASER premium quality backlit plastic safety sign. According to the law, it is mandatory to place it above the fire extinguisher at a height of 1.8 and 2.5 meters.
Up to 2000 minutes of light extinction time!
The IMPLASER Members of the B150 series repeatedly exceed the requirements of the DIN 67510 standard.
Its luminous density 150 mcd/m2 after 10 minutes, but still 20 mcd/m2 after 60 minutes, which The light goes out after 2000 minutes, ie more than 33 hours.
Larger size, better visibility!
Instead of the usual 150x150 mm size, you can choose the IMPLASER 210x210 mm pictograms, thus providing greater safety for the occupants. The escape routes are made in the size of 320x160 mm, which are clearly visible even from an extreme distance. Visibility up to 20 meters!
Size: 21x21 cm
ISO standard (ISO 7010, ISO 16069 and ISO 3864)
Recognition distance (m): 10<
Specification:
IMPLASER B150
150mcd/20mccI-2000min
Light density after 10 minutes: 150 mcd/m2
Light density after 60 minutes: 20 mcd/m2
Light extinction time: 2000 minutes (33.3 hours)
Base material: White polymer
Thickness: 0.7 mm
Surface protection: UV-resistant, wet cleanable
The 54/ 2014 (XII. 5) BM decree (National Fire Protection Regulation) safety sign in accordance with § 147.
Standard conformity:
2/ 1998 (I.16.) MüM decree on safety and health protection signs applicable at the workplace
MSZ ISO 3864-1:2009 Graphic symbols. Safety colors and safety signs.
MSZ ISO 16069: 2009 Graphic symbols. Safety signs. Escape route signaling systems (SWGS)
Up to 2000 minutes of light extinction time!
The IMPLASER Members of the B150 series repeatedly exceed the requirements of the DIN 67510 standard.
Its luminous density 150 mcd/m2 after 10 minutes, but still 20 mcd/m2 after 60 minutes, which The light goes out after 2000 minutes, ie more than 33 hours.
Larger size, better visibility!
Instead of the usual 150x150 mm size, you can choose the IMPLASER 210x210 mm pictograms, thus providing greater safety for the occupants. The escape routes are made in the size of 320x160 mm, which are clearly visible even from an extreme distance. Visibility up to 20 meters!
Size: 21x21 cm
ISO standard (ISO 7010, ISO 16069 and ISO 3864)
Recognition distance (m): 10<
Specification:
IMPLASER B150
150mcd/20mccI-2000min
Light density after 10 minutes: 150 mcd/m2
Light density after 60 minutes: 20 mcd/m2
Light extinction time: 2000 minutes (33.3 hours)
Base material: White polymer
Thickness: 0.7 mm
Surface protection: UV-resistant, wet cleanable
The 54/ 2014 (XII. 5) BM decree (National Fire Protection Regulation) safety sign in accordance with § 147.
Standard conformity:
2/ 1998 (I.16.) MüM decree on safety and health protection signs applicable at the workplace
MSZ ISO 3864-1:2009 Graphic symbols. Safety colors and safety signs.
MSZ ISO 16069: 2009 Graphic symbols. Safety signs. Escape route signaling systems (SWGS)
