PFF-FLIPP-AIR-MATIC portöltő 50 kg-os tartállyal

PFF-FLIPP-AIR-MATIC powder filler with 50 kg container

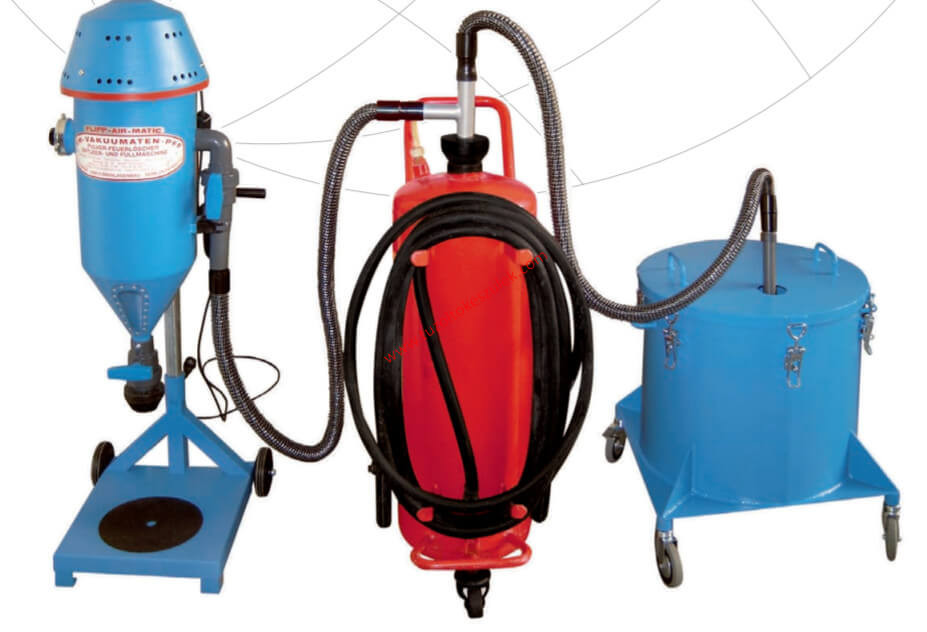

Mobile powder filling device, model PFF-FLIP-AIR-MATIC with movable powder container, for 50 kg of powder, and charging adapter P50-250N for emptying and sifting powder extinguishers of all sizes and brands

and to upload

< a class="avia-button avia-icon_select-yes-left-icon avia-color-theme-color avia-size-medium avia-position-right " href="https://www.fritz-emde.com/wp -content/uploads/PDF/H_101100.pdf" target="_blank" rel="noopener">Downloadable product data sheet

The assembly of this machine together with its accessories is sufficient for 1- For refilling 12 kg
portable fire extinguishers and
50 kg mobile fire extinguishers
. Using a larger powder container
up to 250 kg devices
can be emptied and refilled.
The device is equipped with:
» 1 powder filling equipment model
PFF- FLIPP-AIR-MATIC
» 1 charging adapter model P50-250N
» 1 suction hose 32 mm, length
2500 mm
» 1 suction hose 32 mm, length
1500 mm
» 1 pack of 4 plastic suction pipes,
16, 20, 25 and 32 mm, length 700 mm
» 1 plastic suction pipe, 32 mm,
br />length 1200 mm
» 1 x 50 kg movable powder container
Options at extra cost:
» larger powder container (100 kg, 250 kg)
» tiltable powder container
» powder bag in tank
» floor scale

Details

TECHNICAL DATA

< p>

< tr class="">

Working height	approx. 1600 mm
Size (hx w xm)	approx. 500 x 500 x 1200 mm
Diameter	250 mm
Tank	metal
Weight	approx. 30 km
Workflow	VIBRATION FREE
Suction	18 kg/mn - 240 mbar
Drive	230 V, 6 A, 50 Hz
Filters	no maintenance required
Filter cleaning	automatic AIR-MATIC< /td>
Color	hammer lacquer blue

Info

Brand :

Fritz-Emde

Weight:

83 kg/db
