KU4 series CO2 filling equipment (150 g – 45 kg)

Name: KU4 series CO2 filling equipment (150 g – 45 kg)
Brand: Fritz-Emde
SKU: M253000
Price: 2420303 HUF

2 420 303 Ft(1 905 750 Ft+VAT)

Points earned after purchase: 48 406 Ft

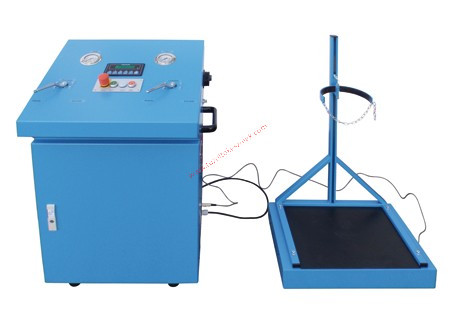

The KU4 series is a stationary high-performance CO2 charging device, of which 3 versions are available. The capacities are the same, the only difference is in the drive.

Variants:

230 V, 50 Hz
compressed air 8 – 10 bar
400 V, 50 Hz

Details

panel

CO2 pump

safety valve 130 bar

electric cable, 5 m, oil and acid resistant

electric control panel with indicator light

2 CO2 hoses

CO2 input filter

TECHNICAL DATA KU4 (number 253,000)

el_after_av_table avia-builder-el-last avia_pricing_default " itemscope="itemscope" itemtype="https://schema.org/Table"> < td class="">Performance < /tr>

max. 4.5 kg/min
Motor	230 V, 50 Hz
Weight	approx. 59 kg
Size (hx w xm)	approx. 500 x 700 x 1000 mm
Color	hammered blue paint

TECHNICAL DATA KUD4 ( number 205,000)

Performance	max. 4.5 kg/min
Drive	compressed air 8 – 10 bar
Weight	approx. 45 kg
Size (hx w xm)	approx. 500 x 700 x 1000 mm
Color	hammered blue paint

TECHNICAL DATA KUS4 (number 233,000)

Performance	max. 4.5 kg/min
Drive	230 / 400 V, 50 Hz
Weight	approx. 65 kg
Size (hx w xm)	approx. 500 x 700 x 1000 mm
Color	hammered blue paint

Data

Brand :

Fritz-Emde

Weight:

30 kg/db
