HND-W series pressure tester 0-600 bar

Leágazás

Combined stationary high- and low-pressure pressure testing equipment

The basic version has 3 branches. It is also available with 1,3 and 5 branches.

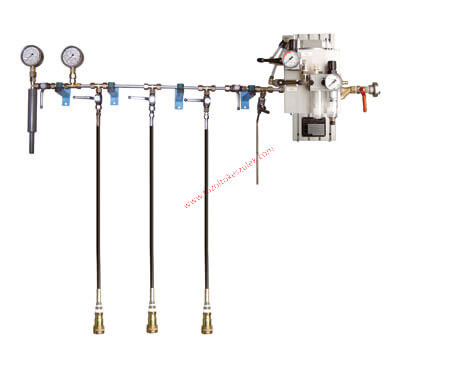

The high and low pressure testing model HND-W-3, 3 connectors, can be mounted on the wall. All sizes and types of powder and CO2 fire extinguishers, CO2 cylinders, breathing cylinders, scuba tanks, N2 tanks, etc. suitable for testing.

Details

» pressure control 0 – 600 bar
(high pressure)
» pressure control 0 – 60 bar
(low pressure)
» safety valve 40 bar
(low pressure)

The equipment is equipped with:
» 3 high-pressure hoses, 1.5 m, with quick connector
» 3 small cone and 3 large cone adapters (additional plug adapters with other
threads can be ordered separately)
» 3 universal low pressure adapters

TECHNICAL DATA

< tr class="">

Size (hx w xm)	approx. 1600 x 400 x 2000 mm
Mounting height	approx. 1700 mm
Water pipe	1/2" coupling
Compressed air	8 – 9 bar (max. high pressure depends on test)
Color	hammered blue paint

Optional at extra cost:

water tank
Safety protection frame
automatic shutdown

Info

Brand :

Fritz-Emde

Weight:

90 kg/db
