Fireproof collar EI120 CARBOLINE 125 mm

Name: Fireproof collar EI120 CARBOLINE 125 mm
Brand: Carboline
SKU: CARBOCC125
Price: 8490 HUF
Availability: InStock

Teljesítmény nyilatkozat

1488-CPR-0579/W

ETA-15/0511 2020/09/17

In stock 13 db

8 490 Ft(6 685 Ft+VAT)

Expected delivery :

20/10/2026

Quantity discount:

20 db

7 896 Ft/db

50 db

7 641 Ft/db

Points earned after purchase: 170 Ft

CARBOLINE FIRE RESISTANT GLOVES AND CUFFS

Performance: EI 120 (120 minutes)

For combustible pipes between 25 and 400 mm in diameter for wall and floor penetrations
Pipe types: PVC, PVC-U, PE, PE-HD, PE-X, PP, ABS, Al-composite
Can be used in conduits in concrete, aerated concrete and brick masonry

Details

CarboCollar CC is a flange for the fireproof insulation of combustible pipes and metal pipes through walls and ceilings.

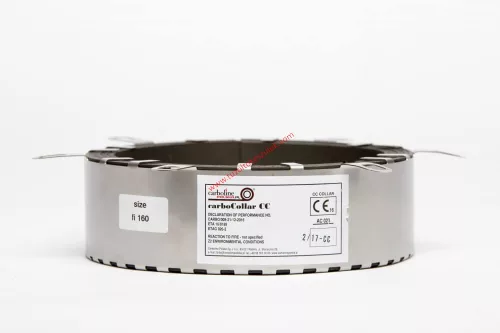

CarboCollar CC cuffs consist of one or more layers of graphite-based cartridges housed in an outer casing made of stainless steel sheet. The steel cover flange is equipped with a buckle and fixing points.

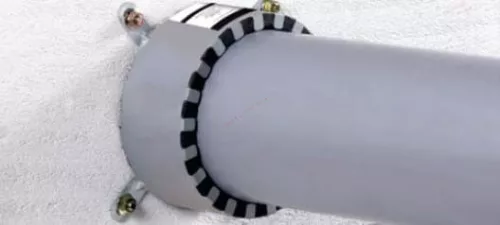

The cuff is placed around the pipe, closed, and then attached to the partition with connecting elements, the number of which depends on the diameter of the rim.< /span>

Available sizes

Type	Diameter
CC–25	25 mm
CC-32	32 mm
CC-40	40 mm
CC-48	48 mm
CC-55	55 mm
CC-68	68 mm
CC-82	82 mm
CC-110	110 mm
CC-125	125 mm
CC-135	135 mm
CC-160	160 mm
CC-200	200 mm
CC-250	250 mm
CC-315	315 mm
CC-350	350 mm
CC-400	400 mm

If the product is not in stock, the delivery time is: 8-12 sun.

Data

Brand :

Carboline

Weight:

1 kg/db
